By simply pressing a button, alignment (both horizontal and vertical) is obtained simultaneously with clamping. Pneumatic balancing of tool-holder shaft. A travel roller under the horizontal operating arm minimizes the pull and push effort of the arm itself. Turn table equipped with a patented system to switch the working range from 10”÷20” to 14”÷ 24” with a very simple change. The self-centering chuck is able to clamp new-generation alloy rims from both the outside and the inside without damaging them, thanks to its special integral plastic guards supplied as

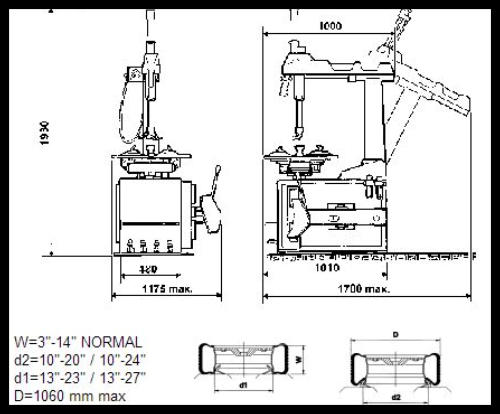

Technical data 10" - 23" Self centering chuck opening 10" - 27" Self centering chuck opening Bead breaking power (blade) Bead breaking power (cylinder) Bead breaking blade opening Max. wheel diameter Wheel width Working pressure Max. self centering torque Noise level when running Motor (double polarity) Weight

10"÷20" (><) / 13" ÷23"(<>) 10"÷24" (><) / 13" ÷27"(<>) 15.500 N (10 BAR) 32.200 N (10 BAR) 320 mm. (STD) - 430 mm. (RACING) 1060 mm. 3" - 14" 10 BAR 1000 Nm < 70 dB (A) 0.75 KW - 1 Ph - 200/230 V - 50/60 Hz 230 Kg.

Supplied accessories Tyre lever Set of 4 plastic jaw pads Filter pressur reducer unit Cover for tyre lever Two plastic inserts for tools head Plastic cover for blade

Optional accessories Set of 4 motorcycle attachments Bead breaker blade for bikes Bead presser pliers Kit of 6 covers for tyre levers Kit of 6 bead breaker blade covers

cod. 8-11100036 cod. 801.260402 cod. 801.262417 cod. 801.246241 cod. 801.258383

standard. Inflating nozzles, located on the sliding blocks, adapt automatically to diameter of rim. "IP System" (Increased Power System): speed rotation (6 - 15 rpm) of the turntable automatically adjustable, the torque remains at the best ratio also at maximum speed. The powerful bead breaker is operated by a double acting cylinder (D.186 mm. with drawn stainless steel barrel, designed to last a long time even under unfavorable conditions (such as humidity and poor lubrication). The arm can be regulated in two positions: standard and racing. In the racing position the blade opening is 430 mm.! The blade is articulated for better penetration between tyre and rim. A special plastic blade guard, supplied as standard, protects the alloy rim during the bead-breaking operation: The tyre changer is available in version with 20" turntable with two rotation speeds (2V), with tubeless tyre inflation system (M 624 2V FS), or without (M 624).

X

M 624 with Bead Pressing System

Automatic tyre changer suitable for all car, SUV, van and motorcycle wheels, enables the user to mount and demount any type of tyre. “IP system” (Increased Power system): speed rotation of the turntable automatically adjustable, the torque remains at the best ratio also at maximum speed. Available only for M 624 2V FS (2-speed version: 6 - 15 rpm). Tilting post with high torsional rigidity in all working positions for maximum rim protection during the work, above all in the general reinforcement of the machine’s structure. Tool-holder shaft is balanced and activated by means of an air-operated servocontrol with automatic head locking in the ideal working position .A roller under the horizontal operating arm minimises the effort of operators. Turntable equipped with a patented system to switch the working range from 10”÷20” to 14”÷24” (from outside rim clamping) with a simple manual shift.

The tubeless inflating device pedal, located at the side of the unit to prevent accidental activation. The high capacity tank (16 litres) located inside the unit complies with Norm EN 286 I.1 in conformity with EEC (European Economic Community) guidelines 87/404/EEC. The bead-breaking arm can be set in two positions: standard and racing. In the racing position the blade opening is 430 mm.! The blade is articulated for better penetration between tyre bead and rim. Automatic tyre changer available with tubeless inflating device (M 520 2V FS - M 520 FS) and without. The turntable turns in both directions; in “2V” models, are available two speeds (6 - 12 rpm) in clockwise direction, controlled by pedal. Inflating nozzles, placed on the sliding jaws, adapt automatically to the rim diameter. By simply pressing a button, operator can simultaneously lock or release both horizontal and vertical arms. Air-operated balancing of the tool-holder shaft. The vertical hexagonal shaft is 38 mm. to achieve strong stability of the tool head while operating. Tool head with new profile to suit to new tyres and rims. Interchangeable plastic parts to protect the rims, during tyre demounting/mounting. The turntable can clamp alloy rims of new-generation from both outside and inside without any damage thanks to its special plastic protections supplied as standard. Semi-Automatic tyre changer with swing arm; available also with tubeless inflating device on M 320 FS and M 318 FS. The high capacity tank (16 litres) located outside the unit complies with Norm EN 286 I.1 and with EEC guidelines 87/ 404/EEC. Set filter and lubricator supplied as standard. Semi-Automatic tyre changer with swing arm; available also with tubeless inflating device on M 320 FS and M 318 FS. The high capacity tank (16 litres) located outside the unit complies with Norm EN 286 I.1 and with EEC guidelines 87/404/EEC. Set filter and lubricator supplied as standard. The powerful bead breaker is operated by a double acting stainless steel cylinder of 186 mm. diameter. Two special plastic guards, one for the blade (supplied as standard) and the other for the side rubber pad (on request), to protect alloy rims during the bead-breaking. Ergonomic pedals made of aluminium with clear functional symbols. The ALLY 70 and ALLY 60 tyre lifting/pressing devices have been designed in order to make faster and easier than never before the changing of sport tyres, low profile tyres and special “run flat” tyres, like: Good-Year RunOnFlat, Pirelli Eufori@, Bridgestone RFT, Michelin ZP, Continental SSR, Dunlop DSST. Both devices can be fitted to the whole range of automatic car tyre changers in our present production. On tyre-changers of the M 5 / 6 Series equipped with pneumatic balancing of the tool-holder shaft , the working range starts from 15”. When dismounting, the bead pressing roller can be lowered till to the rim well to reduce the tension and to allow the tyre an easier slip over on the tool head. When mounting, the pressing arm BPA (optional on ALLY 60), in set on the bead in a fixed position near the tool head and prevents from slipping over the tool head itself. With the BPA properly set, the first bead pressing roller turns the tyre and easily keeps the bead in the rim well without risks for tyre operator and damages for the tyre. KP 70 - MICHELIN PAX SYSTEM accessory for ALLY 70. ALLY PAX - MICHELIN PAX SYSTEM accessory; for swing arm tyre changers of the M 3 Series. ALLYPAX device is ideal also for sport and low profile tyres, when equipped with special accessory (APT kit on request).

X

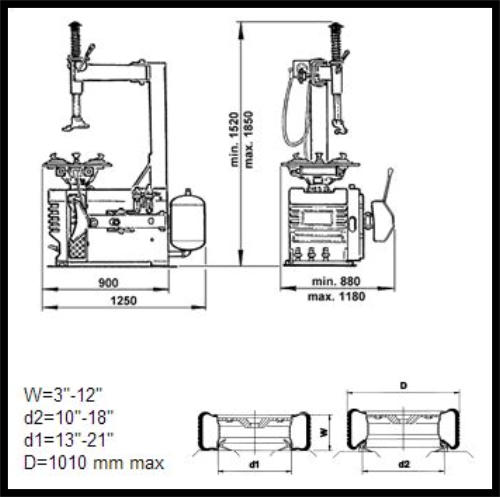

M 318 FS

Horizontal positioning of the tool is obtained by means of a threaded hand wheel. Operating on various wheels of the same dimensions means that tool maintains position originally regulated for. The single action lever locks the shaft vertically, causing at the same time the movement upwards of the peak. At the base of the post, a thermoformed carter provides a housing for 1 Kg standard lube can as well as a large housing for small pieces. The 4 clamp self centering chuck , rotates in either direction and can clamp either from the outside of the rim or from the inside, and with the special clamp guards in addition to safeguarding alloy rims it is possible to secure in closure rims up to 10" in diameter.

Technical data Self centering chuck opening Bead breaking power (blade) Bead breaking power (cylinder) Bead breaking blade opening Max. wheel diameter Wheel width Working pressure Max. self centering torque Noise level when running Motor Weight

10" - 18" (> <) / 13" - 21" (< >) 15.500 N (10 BAR) 32.200 N (10 BAR) 320 mm. 1010 mm. 3" - 12" 10 BAR 120 Kgm < 70 dB (A) 0.55 Kw - 3 Ph - 400 V - 50 Hz 175 Kg. (FS) - 165 Kg.

Supplied accessories Tire lever Set of 4 plastic jaw pads Filter pressure reducer unit Cover for tire lever Plastic cover for blade

Optional accessories M318 Tire inflating gun, EEC homol. Double scale tyre inflating gun M 318 FS - M 318 Set of 4 motorcycle attachments Special bead breaker blade for bikes Kit of 6 covers for tire levers Kit of 6 plastic covers for blade

cod. 801.276833 cod. 801.271621 cod. 8-1110.00.36 cod. 801.260402 cod. 801.246241 cod. 801.258383

In the "FLATE SYSTEM" version the inflating nozzles, located on the sliding blocks, adapt automatically to diameter of rim. The high capacity tank (16 liters) located outside the unit complies with Norm EN 286 I.1 in conformity with EEC (European Economic Community) guidelines 87/404/EEC. The powerful bead breaker is operated by a double acting cylinder (D.186 mm. with drawn stainless steel barrel, designed to last a long time even under unfavorable conditions (such as humidity and poor lubrication). Set of motorcycle attachments with special bead breaker blade. (Optional)

X

M 520 FS - M 520 2FS0/FS/2V

Air-operated tilting of column. Mechanical balancing of tool- holder shaft. By simply pressing a button, alignment (both horizontal and vertical) is obtained simultaneously with clamping. Travel roller under horizontal-swing arm to minimise the pull and push effort required. The 4 clamp self centering chuck , rotates in either direction and can clamp either from the outside of the rim or from the inside, and with the special clamp guards in addition to safeguarding alloy rims it is possible to secure in closure rims up to 10" in diameter. The tyre changer is available in version with tubeless tyre inflation system (FS), or without.

Technical data Self centering chuck opening Bead breaking power (cylinder) Bead breaking blade opening Max. wheel diameter Wheel width Working pressure Max. self centering torque Motor Turntable speed Weight (without accessories)

10" ÷20" (><) / 13" ÷23"(<>) 32.200 N (10 bar) 320 mm. 1060 mm. 320 mm. 10 bar 120 Kgm 0.55 KW - 3 Ph - 400V- 50 Hz 8 r.p.m. (U/min) 225 Kg. (FS) - 220 Kg.

Supplied accessories Tire lever Set of 4 plastic jaw pads Filter pressure reducer unit Cover for tire lever Two plastic inserts for tools head Plastic cover for blade

cod. 262601 cod. 223420 cod. 2-00910 cod. 430573 cod. 222099

X

M 720 RALLY

By simply pressing a button, alignment (both horizontal and vertical) is obtained simultaneously with clamping. Mechanical balancing of tool-holder shaft. A travel roller under the horizontal operating arm minimizes the pull and push effort of the arm itself. The self-centering chuck is able to clamp new-generation alloy rims from both the outside and the inside without damaging them, thanks to its special integral plastic guards supplied as standard. Inflating nozzles, located on the sliding blocks, adapt automatically to diameter of rim.

Technical data Self centering chuck opening Bead breaking power (blade) Bead breaking power (cylinder) Bead breaking blade opening Max. wheel diameter Wheel width Working pressure Max. self centering torque Noise level when running Motor (double polarity) Weight

10"÷20" (><) / 13" ÷23"(<>) 15.500 N (10 BAR) 32.200 N (10 BAR) 320 mm. (STD) - 430 mm. (RACING) 1060 mm. 3" - 12" 10 BAR 1000 Nm < 70 dB (A) 0. 9/1.2 Kw - 3 Ph - 400 V - 50 Hz 235 Kg.

Supplied accessories Tire lever Set of 4 plastic jaw pads Filter pressure reducer unit Cover for tire lever Two plastic inserts for tools head Plastic cover for blade

Optional accessories Set of 4 motorcycle attachments Kit of 6 covers for tire levers Kit of 6 bead breaker blade covers

cod. 801258650 cod. 801.246241 cod. 801.258383

The powerful bead breaker is operated by a double acting cylinder (D.186 mm. with drawn stainless steel barrel, designed to last a long time even under unfavorable conditions (such as humidity and poor lubrication). A special plastic blade guard, supplied as standard, protects the alloy rim during the bead-breaking operation.

X

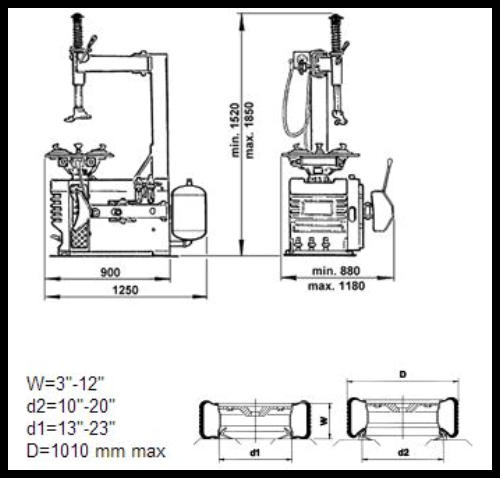

M 320 FS - M 320

Horizontal positioning of the tool is obtained by means of a threaded hand wheel. Operating on various wheels of the same dimensions means that tool maintains position originally regulated for. The single action lever locks the shaft vertically, causing at the same time the movement upwards of the peak. At the base of the post, a thermoformed carter provides a housing for 1 Kg standard lube can as well as a large housing for small pieces. The 4 clamp self centering chuck , rotates in either direction and can clamp either from the outside of the rim or from the inside, and with the special clamp guards in addition to safeguarding alloy rims it is possible to secure in closure rims up to 10" in diameter.

Technical data Self centering chuck opening Bead breaking power (blade) Bead breaking power (cylinder) Bead breaking blade opening Max. wheel diameter Wheel width Working pressure Max. self centering torque Noise level when running Motor Weight

10" - 20" (> <) / 13" - 23" (< >) 15.500 N (10 BAR) 32.200 N (10 BAR) 320 mm. 1010 mm. 3" - 12" 10 BAR 120 Kgm < 70 dB (A) 0.55 Kw - 3 Ph - 400 V - 50 Hz 180 Kg. (FS) - 170 Kg.

Supplied accessories Tire lever Set of 4 plastic jaw pads Filter pressure reducer unit Cover for tire lever Plastic cover for blade

Optional accessories M 320 Tire inflating gun, EEC homol. Double scale tire inflating gun M 320 FS - M 320 Set of 4 motorcycle attachments Special bead breaker blade for bikes Kit of 6 covers for tire levers Kit of 6 plastic covers for blade

cod. 801.276833 cod. 801.271621 cod. 8-1110.00.36 cod. 801.260402 cod. 801.246241 cod. 801.258383

In the "FLATE SYSTEM" version the inflating nozzles, located on the sliding blocks, adapt automatically to diameter of rim. The high capacity tank (16 liters) located outside the unit complies with Norm EN 286 I.1 in conformity with EEC (European Economic Community) guidelines 87/404/EEC. The powerful bead breaker is operated by a double acting cylinder (D.186 mm. with drawn stainless steel barrel, designed to last a long time even under unfavorable conditions (such as humidity and poor lubrication). Set of motorcycle attachments with special bead breaker blade. (Optional)

X

M 520 2V FS - M 520 2V2FS0/FS/2V

Air-operated tilting of column. Mechanical balancing of tool- holder shaft. By simply pressing a button, alignment (both horizontal and vertical) is obtained simultaneously with clamping. Travel roller under horizontal-swing arm to minimise the pull and push effort required. The table turn in both directions and two speeds are available (6 - 12 rpm) controlled by pedal. Inflating nozzles, placed on the sliding jaws, adapt automatically to the rim diameter.

Technical data Self centering chuck opening Bead breaking power (cylinder) Bead breaking blade opening Max. wheel diameter Wheel width Working pressure Max. self centering torque Motor Turntable speed Weight (without accessories)

10" ÷20" (><) / 13" ÷23"(<>) 32.200 N (10 bar) 320 mm. 1060 mm. 320 mm. 10 bar 120 Kgm 0.55 KW - 3 Ph - 400V- 50 Hz 8 r.p.m. (U/min) 225 Kg. (FS) - 220 Kg.

X

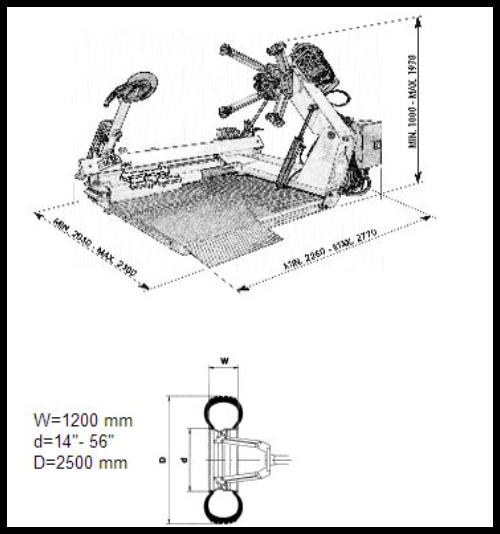

F 561

The F 561, with simultaneous movement of tool holder carriage and chuck holder arm, allows the wheel to be positioned in an instant. The controls are located on a movable stand which allows the operator to work the machine from the position of this choice. Moving parts can be operated at two speeds by pressing the relevant pedals on the movable post. The universal self centering chuck is activated by a hydraulic cylinder and can lock all rims from 14 to 56 inches from the inside or from the central hole. It can rotate in both directions at two different speeds. The bead breaking, fitting and removal tools are incorporated into a single, completely automatic revolving arm. All tool

Technical data Handles rims from Max. wheel diameter Max. wheel width Working pressure Noise level when running Gear box motor (2 speed) Pump motor (2 speed) Weight (with accessories)

14" - 56" 2500 mm. 1200 mm. 130 BAR < 70 dB (A) 1.9/2.5 Kw 3 Ph 400V 50 Hz 2.6/3.3 Kw 3 Ph 400V 50 Hz 1090 Kg.

Supplied accessories Bead lifting lever Rim lever Rim pliers Lube hand pump

cod. 217615 cod. 417620 cod. 271605 cod. 280919

Optional accessories Set of 4 jaws for alloy rims Set of 4 extensions from 48" to 56" Radio control Extra platform Roller for tubeless

cod. 801280913 KCL 56 cod. 801280915 KPL 4 cod. 801280870 RC 56 cod. 801280917 PS 56 cod. 801280918 RT 56

holder arm movements (changeover to other plane of wheel, out of work position, ready for work position) are totally automatic. Both peak and bead breaking roll can be selected directly from the movable post thus optimizing and facilitating operator s task. For total operator safety, a non return check valve, fitted directly onto cylinder, keeps the wheel locked even in case of electrical failure or hose rupture. Moreover, a pilot operated dual seal check valve, prevents the spindle carrier arm from dropping if the hydraulic circuit accidentally breaks. Supplied upon request with a practical radio control (RC 56) comprising a transmitter (located on the post) and a receiver (located on the machine) thus eliminating any need for a connecting cable and allowing all maneuvers to be performed without hindrance and from the most convenient position for the operator.

X

F 560 A

The sliding table, with long travel stroke, connected to the tool arm carriage, allows the wheel to be easily picked up and positioned on the self centering chuck. The controls are located on a movable stand which allows the operator to work the machine from the position of this choice. Moreover, for the operator s perfect safety, there is a low voltage supply to the controls (24 V). Once the tool arm has been moved to the "non working position", its travel is automatic, allowing it to be shifted from one side of the wheel to the other at considerable speed and complete safety. The tool arm can also be clamped to the carriage in any working position thanks to the synchronized rack connection.

Technical data Handles rims from Max. wheel diameter Max. wheel width Working pressure Noise level when running Gear box motor (2 speed) Pump motor Weight (with accessories)

14" - 56" 2300 mm. 1065 mm. 130 BAR < 70 dB (A) 1.3/1.85 Kw 3 Ph 400V 50 Hz 1.5 Kw 3 Ph 230/400V 50 Hz 750 Kg.

Supplied accessories Bead lifting lever Rim lever Rim pliers Lube hand pump

cod. 217615 cod. 417620 cod. 271605 cod. 280919

Optional accessories Set of 4 jaws for alloy rims Set of 4 extensions from 48" to 56" Bead guide lever Pair of bead clamps Roller for tubeless

cod. 801.280913 KCL 56 cod. 801.280915 KPL 4 cod. 801.280916 LG 56 cod. 801.271957 MV 50/2 cod. 801.271609 RT 50/2

The universal self centering chuck is activated by a hydraulic cylinder and can lock all rims from 14 to 56 inches from the inside or from the central hole. It can rotate in both directions at two different speeds. Four sheet of metal, prevent squashing between the chuck flanges. The tool, which may be tilted or swiveled as required, enables every operation to be carried out at top speed. The support system for bead breaker disk, without inside bracket, eliminates all friction, thus improving performance. A mechanical tool arm tip lock device, prevents the arm from being moved to its "non working position" if the tool has been removed. For total operator safety, a non return check valve, fitted directly onto cylinder, keeps the wheel locked even in case of electrical failure or hose rupture. Moreover, a pilot operated dual seal check valve, prevents the spindle carrier arm from dropping if the hydraulic circuit accidentally breaks

X

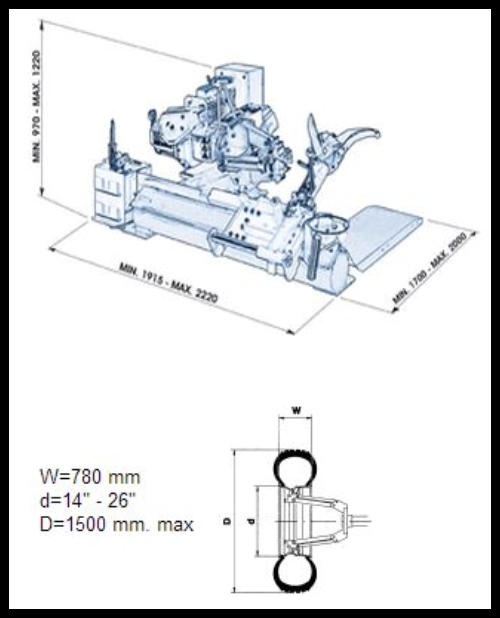

F 260

The tool holder arm can be set in two fixed positions, divided by distance of 315 mm. The controls are located on a movable stand which allows the operator to work the machine from the position of this choice. Moreover, for the operator s perfect safety, there is a low voltage supply to the controls (24 V). The universal self centering chuck is activated by a hydraulic cylinder and can lock (without extensions) rims up to 26" from the inside or from the central hole. Rotation is in either direction at a speed of 7.5 rpm. The tool, which may be tilted or swiveled as required, enables every operation to be carried out at top speed. The support system for bead breaker disk, without inside bracket, eliminates

Technical data Handles rims from Max. wheel diameter Max. wheel width Max. wheel weight Working pressure Noise level when running Gear box motor Pump motor Weight (with accessories)

14" - 26" 1600 mm. 780 mm. 1200 Kg. 130 BAR < 70 dB (A) 1.5 Kw 3 Ph 230/400 V 50/60 Hz 1,1 Kw 3 Ph 230/400 V 50/60 Hz 530 Kg.

Supplied accessories Bead lifting lever Rim lever Rim pliers Lube hand pump

cod. 217615 cod. 417620 cod. 271605 cod. 280919

Optional accessories Set of 4 jaws for alloy rims Bead guide lever Pair of bead clamps Roller for tubeless

cod. 801.280913 KCL 56 cod. 801.280916 LG 56 cod. 801.271597 MV 50/2 cod. 801.271609 RT 50/2

all friction, thus improving performance. A mechanical tool arm tip lock device, prevents the arm from being moved to its "non working position" if the tool has been removed. For total operator safety, a non return check valve, fitted directly onto cylinder, keeps the wheel locked even in case of electrical failure or hose rupture. Moreover, a pilot operated dual seal check valve, prevents the spindle carrier arm from dropping if the hydraulic circuit accidentally breaks. Included among the wide range of accessories available upon request are a set of jaws and a clamp which enable light alloy and chrome plated rims to be handled quickly and safety.

X

F 240

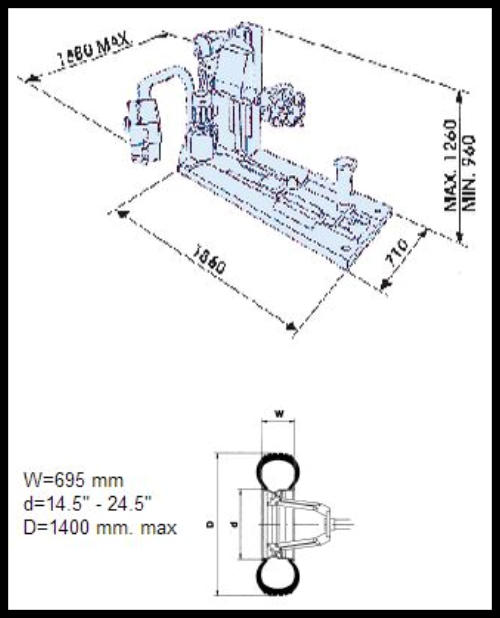

The tire-changer has been specifically designed to demount and mount truck and bus tubeless tires with rims from 14,5” to 24,5”, a maximum 1400 mm diameter and a maximum 695 mm width. Its operating principle is based on two carriages, a vertical spindle carriage and a horizontal tool carriage, each traveling on its own axis and ensuring the wheel being processed is always centered in relation to the tools. The control console has all the controls for operating the tire changer. It is installed on a mobile arm so that it is always within reach while you are working on a wheel, or can be moved out of the way during wheel loading or unloading. All the controls on the console are extremely sensitive, so as to allow very small movements with the utmost precision.

Technical data Handles rims from Max. wheel diameter Max. wheel width Max. wheel weight Working pressure Noise level when running Gear box motor Pump motor Weight (with accessories)

14.5" - 24.5" 1400 mm. 695 mm. 1200 Kg. 130 BAR < 70 dB (A) 0.75 Kw -3 Ph -230/400 V -50 Hz 0.75 Kw -3 Ph -230/400 V -50 Hz 420 Kg.

Supplied accessories Locking accessories 14.5”-17.5” Locking accessories 19.5”-24.5” Bead breaker roller Ring nut for securing wheel Rim clamp Lubricating brush

Optional accessories Clamp for alloy rims Bead lifting lever Bead breaker disk Hook shaped tool

cod. 801.227195 PL56 cod. 801.217615 LA24 cod. 801.289441 DS24 cod. 801.289440 UB24

The tire changer is equipped with two lightweight aluminum alloy clamping spindles (one for wheels from 14.5” to 17.5” and the other for wheels from 19.5" to 24.5”), easily fitted on the gearbox central shaft. Bead-breaking roller, functional and convenient, for smoother operation with wheels of all kinds; an optional second roller speeds up demounting/mounting procedures as the first roller does not have to be shifted to work on the other side of the wheel.

X

M 928 Royal - M 928

Tyre changer suitable for all car wheels, enables the user to mount and demount any type of tyre currently available on the international markets, without additional devices, from standard to sport tyres, from low profile tyres to special “run flat” ones like: Good-Year RunOnFlat, Pirelli Eufori@, Bridgestone RFT, Michelin ZP, Continental SSR, Dunlop DSST. Axial mounting turntable allows quick, secure wheel clamping and bead breaking on both sides with no need to turn the wheel over (wheel is clamped on the machine just once). “IP system” (Increased Power system): speed rotation of the turntable automatically adjustable, the torque remains at the best ratio also at maximum speed (6 - 15 rpm). Handy multipurpose control for easier “dynamic” bead breaking, independent or simultaneous, of both the tyre beads by means of its telescopic system with double disk.

Technical data Rim diameter (M 928 ROYAL) Rim diameter (M 928) Max self-centering torque Self-centering ratation speed Max. wheel diameter Max. wheel width Working pressure Max self-centering torque Noise level when running Motor (“IP” System) Supply voltage Max. weight wheel Weight machine (with wheel lift)

12”÷28” 10”÷28 1200 Nm 6-15 r.p.m. 1080 mm. 15” 10 BAR 1.200 Nm ≤ 70 dB (A) 0.75 kW - 50/60 Hz 1 Ph - 200/230 V 85 Kg. 400 Kg.

Supplied accessories

Optional accessories Wheel Lifting Device Air-operated bead pressing device Complete tubeless tyre inflating set

New controlled penetration system gives effective bead breaking on the most difficult wheels (Patent Pending). Ergonomic wheel lift, allows easy positioning of all wheels on the turntable (optional accessory). Machine working height designed for perfect ergonomics with all kind of wheels: ideal for all operators. *: Constant height (Reverse rim wheels excepted). Tilting post with high torsional rigidity in all working positions for maximum rim protection during the work, above all in the general reinforcement of the machine’s structure. Tool-holder shaft is balanced and activated by means of an air-operated servocontrol with automatic head locking in the ideal working position . A roller under the horizontal operating arm minimises the effort of operators. Pneumatically operated side-swing to locate the arm on the underside of the tyre. The inflating device pedal, located at the side of the unit to prevent accidental activation. All machine movement controls are conveniently to hand for the operator and easy inspectable. “KFS 28” is an advanced inflating device; with its variable diameter setting and the innovative “top-down-shot” grants a perfect and easy inflation of all type of tyres. Available on request. “PH 28” Bead pressing accessory, enables the user to mount and demount the upper bead on the most difficult wheels. Available on request. The same working movements in the demounting procedure, but absolutely no effort is required from the operator thanks to the “LEVER-LESS” technology incorporated in the tools head (Patent pending). Simultaneous use of upper bead breaker (using as an extra bead presser) and the tools head for easier tyre mounting. Super-automatic tyre changer suitable for all car, SUV, van and motorcycle wheels, enables the user to mount and demount any type of tyre. Tools head with new profile to suit to new tyres and rims. Interchangeable plastic parts to protect the rims, during tyre demounting/mounting.
